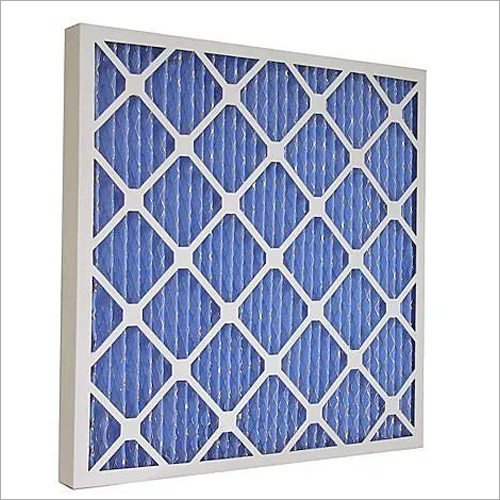

Disposable Panel Filter

Product Description

We are one of the trusted organizations engaged in manufacturing and exporting Disposable Panel Filter. This filter is made up of premium quality cardboard and synthetic fiber materials that are procured from the authentic vendors of the market. Our offered filter is useful in primary filters which are present in the air conditioning systems. This panel is available with a diagonal stiffener stuck to media, in order to keep the spacing of folds and regulate filtering. Our Disposable Panel Filter is also provided in  rounded pleats for efficient functioning.

Features:

• Water resistant
• Sturdy construction
• Excellent epoxy finish


Disposable Panel Filter

"HYGIENO" filters are manufacturers of DISPOSABLE PANEL FILTERS used for the primary filters in the AIR CONDITIONING system. The specialty of the G2 / G4 panel filter is its high air flow rate at low pressure drop with a long durability. The combination of the unique media, beverage board and pleating technology makes the filter, a low energy consuming product at the same time it performs well in all situations.

Advantage : -

Water resistant cardboard frame

Conception with girders/crossbars

Diagonal stiffener stuck to media to keep the spacing of folds, protect and maintain the filter

Fully supported media bonded onto a wire support grid

Rounded pleats for a maximum capacity of dust retention and facilitate airflow through the media

Description : -

Application:   Primary filter for air conditioning systems.

Type: High performance disposable pleated panel filter.

Case: Rigid water resistant cardboard.

Media: Synthetic Fiber.

EN 779:2002 efficiency:  G2 / G4

Eurovent efficiency:  EU2 / EU4

Average assistance    65 to70 %

Final pressure drop:  150 / 250 Pa.

Rated Face Velocity (m/s)  2.5

Temperature:  70°C maximum in continuous service.

Max. Relative Humidity    100% RH
