Relying on the reflective knowledge of our team, we have been triumphant in carving a distinctive niche for ourselves as a manufacturer and exporter of FFU. This filter fan unit plays an important role in the clean room ventilation system. Our offered filter fan is an extremely flexible system which is easy to be exchanged with lay-in lights or blank panels. The FFU we offer is available in various specifications, as per the requirements of clients.
- Horizontal and Vertical air flow
- Excellent power flow
- Fine air cleanliness

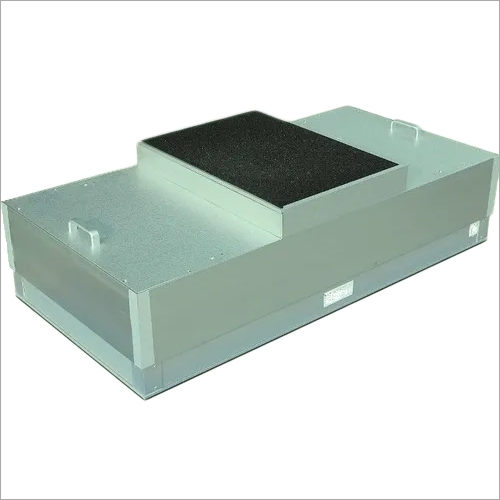

FFU (FAN FILTER UNIT)
Filter Fan Units ar key elements in clean room ventilation systems. ÃÂ¢Ã¢âÂ¬Ã âChemietronÃÂ¢Ã¢âÂ¬ÃÂ supplies the elements for Filter Fan Units (FFU) as well as the units themselves. Starting from standard FFU design, our team of experts implements the specification for your special project.
Air cleanliness : ISO Class 5 / Class 100 / M 3.5 AREA
Air Velocities : 0.45 ÃâÃÂ± 0.05 mps (90 ÃâÃÂ± 20 FPM)
Air Flow : Horizontal / Vertical
Noise Level : Less than 65 dB
Vibration Level : Minimum
POWER SUPPLY : 230V AC, 1-ÃÆÃÅ, 50HZ
Filter Fan Units made by Chemetron are available : -
As standard or customized versions
- For standard and customized ceiling grids
- for different filter and grid sizes
- as top load or bottom load versions
- for liquid or gasket seal systems
- for various air flows and pressure drops
- with minimal vibration and audible noise emissions
- with an external rotor motor system
- speed variation via BUS or supply voltage
- for various control systems
As the needs or uses change in a facility, the units can be exchanged with lay-in lights or blank panels. For facilities with lower classification, upgrades can be obtained by
simply adding additional FFUÃÂ¢Ã¢âÂ¬Ã¢âÂ¢s. When a computer controlled management system is installed, units or clusters of units can be remote controlled to operational needs.
Use motors with the lowest power consumption available. With complete controllability of each and every FFU (via control and monitoring software) use just as much of power as necessary for your process.
FFUÃÂ¢Ã¢âÂ¬Ã¢âÂ¢s are fully salvageable as stand-alone units.
Model HEPA Area Over All Dimension
W X D X H
CFFU-22 610 x 610 x 69 615 x 615 x 320
CFFU-32 915 x 610 x 69 920 x 615 x 320
CFFU-42 1220 x 610 x 69 1225 x 615 x 320
