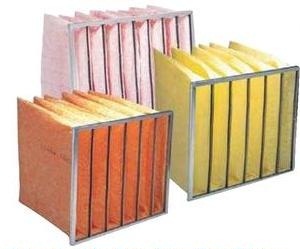

Pocket Filter

Product Description

Holding an enriching experience of several years and complete knowledge of the filter industry, our personnel are manufacturing and exporting Pocket Filter. This filter is engineered at our unit using ABS/galvanized steel that is sourced from the authentic vendors of the market. Our offered filter is available with self supporting features. This filter is efficient in intake application such as diesel generators, gas turbines and spray painting plants. Our Pocket Filter is  provided with conical pockets and self-supporting bags.

Features:

• Low initial pressure loss, flat development
• better air distribution
• Effective separation of Abrasive particle


POCKET FILTER

"HYHIENO" filters are manufacturing BAG FILTERS (POLYSTER MEDIA) as medium to high efficiency extended surface self-supporting pocket (bag) filters made of super fine synthetic (polyester) filter media. The progressive density multi-layered fiber arrangement offers excellent filtration performance combined with very high dust holding capacity.

HYGIENO Poly-G model with a unique aerodynamic design is also available for air intake application like gas turbines, diesel generators and spray painting plants.

Advantage : -

• Filter material of newly-developed plastic fiber media

• Low initial pressure loss, flat development

• Newly-developed seam technique for better air distribution

• Conical pockets and self-supporting bags

• Molded, rigid and aerodynamically designed plastic front

Description : -

• Application:  Filtration for fine particle in AHU & Ventilation System

• Type:  Pocket Filter

• Case:  Galvanized steel  /  ABS

• Media:  Progressive structure Polyester media

• EN 779:2002 efficiency:  F5 / F9

• Eurovent efficiency:  EU5 / EU9

• Average assistance  55 to 90 %

• Final pressure drop:  250 Pa.

• Temperature:  80°C maximum in continuous service.

• Max. Relative Humidity  100% RH
• High air flow rate

• Low initial pressure drop

• Sturdy construction

• Extended media surface

• Very High dust holding capacity

• Effective separation of Abrasive particle
