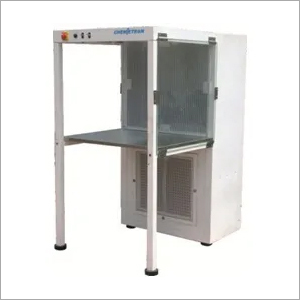

VERTICAL LAMINAR AIR FLOW BENCH

Product Description

Holding immense expertise in this domain, we are able to meet with the standards of this industry as a manufacturer and exporter of Vertical  Laminar Air Flow Bench. Our offered air flow bench ensures high protection to operator and manufactured from superlative quality of raw materials such as differential pressure gauges and auxiliary powder socket. This is designed by us to provide clean air flow in rooms where minimum presence of bacteria can be dangerous. Our Vertical  Laminar Air Flow Bench is applicable in the pharmaceutical industry.

Features:

• Low vibration level
• Velocity display with high and low alarms

• Balanced motor-blower

Laminar Air Flow Bench

A Unique Combination Of The Most Aerodynamic Design With The Highest Product Protection, Operator Comfort, Versatility And Reliability. Delivered With A Strong Table Top Made Of Stainless Steel Or Melamine As A Standard Choice.

Technical Specifications:

•     Air Cleanliness : Iso Class 5 / Class 100 / M 3.5 Area
•     Air Velocities : 0.45 ± 0.05 Mps (90 ± 20 Fpm)
•     Air Flow : Horizontal / Vertical
•     Noise Level : Less Than 67 Db
•     Vibration Level : Minimum
•     Power Supply : 230V Ac,  1-ÃËœ,  50Hz
•     Moc : Gi Powder Coated / Ss-304 / Ss-316
•     Side Panel With Glass / Polycarbonate / Acrylic
•     Two Stage Filtration
•     Eu7 - Intermediate Filter (95% Down To 3 Micron)
•     Eu14 - Hepa Filter - Supply / Exhaust (99.999% Down To 0.3 Micron)
•     Statically & Dynamically Balanced Motor-Blower With Isolator To Reduce Noise Level
•     Fluorescent Lights With Milky White Diffuser
•     Differential Pressure Gauges : 01 No. (Hepa Filter)
•     On/Off Switches (Bl / Fl / Uv)
•     Auxiliary Powder Socket :  5/15 Amp For External Equipment
•     Dop Port
•     Dq, Iq, Oq, Pq Documentation

•     Front Door (Counter Weighted / Hinged / Flexible Pvc Sheet)
•     Hour Meter For Uv
•     Air / Gas Cock
•     Velocity Display With High / Low Alarms
•     Filter Chocking  Alarms
•     Flp Electrical Goods For Explosion


Specifications:

Model     Hepa Area     Working Area     Over All Dimension
Horizontal Flow     W X D X H     W X D X H
Clfb-22     610 X 610     610 X 610 X 610     710 X 1060 X 1450
Clfb -32     915 X 610     915 X 610 X 610     1015 X 1060 X 1450
Clfb -42     1220 X 610     1220 X 610 X 610     1330 X 1060 X 1450
Vertical Flow
Clfb-22     610 X 610     610 X 610 X 610     710 X 710 X 1980
Clfb -32     915 X 610     915 X 610 X 610     1015 X 710 X 1980
Clfb -42     1220 X 610     1220 X 610 X 610     1330 X 710 X 1980
